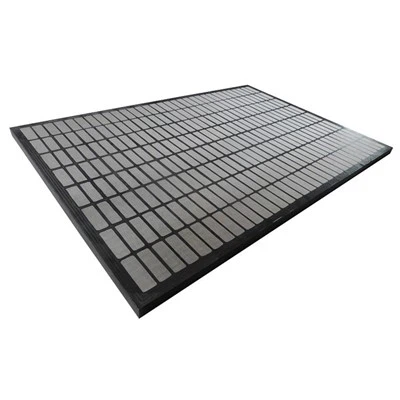

1250x635mm Roj Teb Hloov Shale Shaker Screen



1250x635mm Roj teb Hloov shale shaker screen

Hloov cov ntxaij vab tshaus rau Brandt King Cobra / Hybrid Shale Shakers

















































Brandt huab tais cobra shaker screen (kuj Brandt Hybrid shaker screen)yog tsim los ua qhov hloov pauv rau Brandt King Cobra / Hybrid shale shaker. Muaj steel ncej screen thiab PT ncej screen rau sib txawv drilling av nkos daim ntaub ntawv. Tam sim no peb lub tuam txhab kev lag luam tau tsim ib hom tshiab ntawm kev txhaj tshuaj molding moj khaum uas yog kev koom ua ke nrog cov roj hmab sawb. Qhov no zoo heev txhim kho qhov hnav tsis kam ntawm cov ntxaij vab tshaus shaker thiab txo tus nqi ntawm kev kho av nkos.

Brandt huab tais cobra shaker screen(tseem Brandt Hybrid shaker screen) yog siv los ua qhov hloov pauv rau

Brandt King Cobra / Hybrid shale shaker.

Competitive Advantage

Composite ncej thiab PT ncej yeem.

Ua kom muaj peev xwm ua kua dej ntau ntxiv, txo tus nqi ntawm cov tswv cuab.

Txhim kho kev ua haujlwm yooj yim los ntawm kev sib raug zoo hauv txhua qhov dej drilling.

Ua raws li API RP 13C (ISO 13501).

Scientific & tsim nyog tus nqi tswj system rau kev sib tw nqi.

Cov khoom muag txaus nyob rau lub sijhawm luv tshaj plaws kom tau raws li cov neeg siv khoom xav tau.

steel daim ntawv lo ntawm qhov screen



steel rov qab txhawb lub moj khaum



Sab saum toj zoo stainless hlau xaim mesh daim ntaub



Performance Parameter

Kev tsim qauv screen	Mesh Hom	API RP 13C Kev Tsim Kho	Tus nab npawb coj	D100 Sib cais (microns)	Tsis pub dawb (sq.ft)
SWK-KC/Hybrid-A325	XR/XL	API 325	0.33	44	5.95
SWK-KC/Hybrid-A270	XR/XL	API 270	0.42	54	5.95
SWK-KC/Hybrid-A230	XR/XL	API 230	0.45	61	5.95
SWK-KC/Hybrid-A200	XR/XL	API 200	0.62	72	5.95
SWK-KC/Hybrid-A170	XR/XL	API 170	1.02	86	5.95
SWK-KC/Hybrid-A140	XR/XL	API 140	1.03	106	5.95
SWK-KC/Hybrid-A120	XR/XL	API 120	1.40	134	5.95
SWK-KC/Hybrid-A100	XR/XL	API 100	1.67	159	5.95
SWK-KC/Hybrid-A80	XR/XL	API 80	2.36	193	5.95
SWK-KC/Hybrid-A70	XR/XL	API 70	2.78	230	5.95
SWK-KC/Hybrid-A60	XR/XL	API 60	3.35	274	5.95
SWK-KC/Hybrid-A50	XR/XL	API 50	4.91	296	5.95
SWK-KC/Hybrid-A35	XR/XL	API 35	9.13	529	5.95
SWK-KC/Hybrid-A20	XR/XL	API 20	11.77	781	5.95
* D100: Cov me me thiab loj dua yuav raug muab pov tseg. * API: Sib piv API sieve sib npaug raws li API RP 13C. * Kev Coj Ua Tsis Tau .: Qhov no sawv cev rau qhov yooj yim uas cov kua tuaj yeem ntws los ntawm lub vijtsam.

Rhiav



Kev xa



Cov ntxaij vab tshaus ncav cuag cov neeg siv khoom



Cov neeg muas zaub tab tom kuaj xyuas cov ntxaij vab tshaus
